ZERA-2.3S

The DVS LED Zera 2.3s 2.31mm Video Wall half-panel is perfect for adding flexible sizing options to rental and event production, touring, studio, and church applications.

From the Manufacturer:

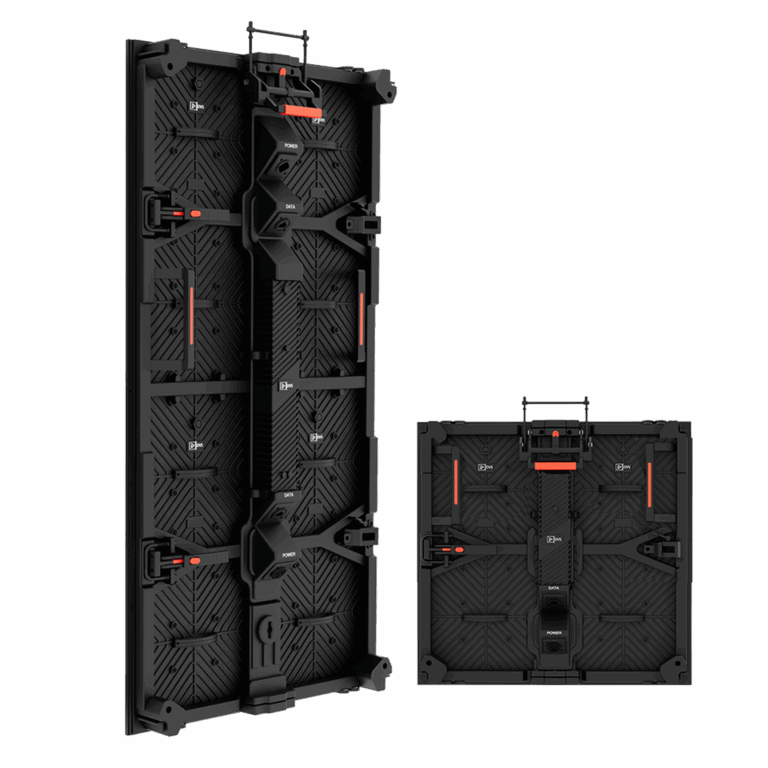

ZERA’s standard size is 500x1000mm (19x39”) for quicker installation, reduced gaps, and lower upfront costs. This 500x500mm half panel is available to complement ZERA full size panels to achieve more precise sizing and aspect ratios.

ZERA offers the ultimate balance of unparalleled visual performance in an ultra-lightweight form. Offered in a range of fine pixel pitches with a larger 500x1000mm panel size to promote cost-effectiveness and quicker installation for high-end rental/stage applications. ZERA features a distinctive low-weight, high-rigidity chassis design that incorporates an intuitive CURV-LOK2 latching system that delivers precise uniformity without compromise to durability.

Equipped with DVS’s DynaPix™ LED technology, ZERA delivers vibrant imagery capable of contrast ratios up to 10,000:1 with ultra-wide viewing angles and enhanced pixel durability. The optional ZERA XP variant incorporates MicroLED technology for true Hybrid Indoor/Outdoor performance with contrast ratios up to 40,000:1. Equipped standard with flagship 5G processing for maximum image performance and DVS’s exclusive Infinite Intelligent Drive technology to deliver up to 24-bit grayscale for captivating color reproduction.

Refining the best qualities in LED technology with feature-rich hardware, ZERA is more than an LED panel – it’s a tool to deliver a unique visual experience with maximum ROI.

Features:

• 2.3mm 19x19” LED video panel (Rental/Stage Use)
• Ultra-Lightweight Design
• High Contrast, High-Brightness Deep Black LED Technology
• HDR10/HLG w/ Low-Latency Support
• Front and Rear Serviceable Magnetic Modules
• CURVLOK2 Latching System
• 7,680Hz Refresh Rate
• 22Bit + Color Processing
• Hot-Swappable Power Supply
• NovaStar or Brompton Processing
• Integrated Edge & Corner Protection

Specifications:

• Application Type: Mobile/Staging, Permanent Install
• Mounting/Rigging: Truss | Ground Support
• Dimensions: 19.6 in L x 19.6 in W x 3.0 in D
• Weight: 9.9 lbs
• Pixel Pitch: 2.31mm
• Pixel Density: 216x216
• Contrast Ratio: 10,000:1
• LED Type: IMD 2-in-1
• Refresh rate: 7,680 Hz
• Brightness: 1,500~ NITS
• Grayscale: 22-bit+ (24Bit+ Ready)
• Serviceability: Front & Rear
• Voltage: Auto-switching 120/240v
• Power Connection: REAN TRUE1 in/Thru
• Data Connection: EtherCON In/Thru
• Environment: Indoor
• Processing: NovaStar, Brompton
• Warranty: 5 Years
