MAC Aura PXL EPS is a high quality professional moving wash fixture. It is a great option for larger stages. It is a versatile fixture capable of creating frontlight, backlight, and beam effects.

From the Manufacturer:

The Martin MAC Aura PXL adds to the industry standard line of Martin wash lights with multi-lens and Aura backlight technology. Bigger and brighter than the MAC Aura, the PXL features significantly higher intensity and a tighter beam as well as a smaller face and less busy lens look compared to the MAC Quantum Wash. The MAC Aura PXLs bigger “bubbles” provide a more appealing look and beautiful wide wash fields.

It is also the first wash light in the market to feature individual pixel control for main beam pixels and Aura backlight with full control via DMX, Art-Net and sACN, as well as with Martin´s very own creative P3 video protocol.

The compact size and low weight, trusted Martin build quality and feature set, and simple and clever setup and control options make the MAC Aura PXL ideal for rental customers and lighting designers working in concert/touring, TV shows and corporate, as well as customers supporting the high-end nightclub market.

Features:

Light Source:

10,500 lumens RGBW light output
High narrow intensity: 940,000 cd
Pixelated Beam: 19x 40W RGBW LEDs
Pixelated Aura: 141x 0.3W RGB LEDs
Fully calibrated using Martin's Full Gamut Color Calibration
Flicker-Free operation – LED driver frequency suitable for all kinds of camera applications
LED Driver frequency adjustable for demanding applications

Optics

Tight beam and beautiful wash field
6 - 59° zoom – Precise, silent and fast zoom
Even wash field with zero hotspot
High intensity mid-air beams
Minor color temperature shift from center to edge

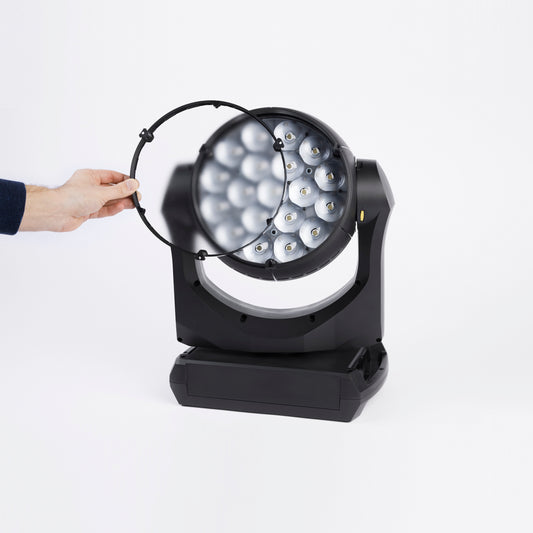

Softlens Accessories:

Creates a softer edge wash field
Reduces glare from fixture lens
Minimal impact to Aura pixel effects
Attaches to front of fixture
Can remain attached to fixture inside flightcase SiP

Color Pallete

RGBW color mixing with very bright and vibrant saturated colors, as well as nice pastels and white tones
Calibrated and Extended Color Modes
Calibrated CTC control: 2,000 - 10,000 K
Tungsten Emulation Option
Virtual Color Wheel

Dynamic Effects:

More than 150 built-in FX macros with control of foreground color, background color, speed and direction
P3 video mapping of fixture Beam pixels and/or Aura pixels
P3 Mix allowing crossfade between video looks and DMX looks
High-speed pan, tilt and zoom

Cooling and Noise

Ultra-quiet cooling system
Theater / Broadcast mode at just 24.6 dB(A)
Low noise pan/tilt and effects operation

Construction

Weight:15.60 kg (34.39 lbs.)
Dimensions: 410 x 489 x 232 mm

Control:

Battery-powered control panel on the base
DMX in & thru
Ethernet in & thru, supporting Art-Net, sACN & Martin P3
Fail-safe bypass on Ethernet ports
RDM over DMX and RDM over Art-Net

Specifications:

Physical

Width (across yoke): 410 mm (16.14 in.)
Width (base): 385 mm (15.16 in.)
Height (head straight up): 489 mm (19.25 in.)
Height (maximum): 544 mm (21.42 in.)
Depth (head): 216 mm (8.50 in.)
Depth (base): 232 mm (9.13 in.)
Minimum center-to-center distance in side-by-side installation: 440 mm (17.32 in.)
Weight: 15.60 kg (34.39 lbs)

Dynamic Effects

eam Dimmer/Shutter: 0 - 100% continuous dimming, regular and random strobe, instant open and blackout
Beam Dimming options: Choice of four dimming curves
Beam Color Mixing: RGB, independently variable 0 - 100%
Beam Color Temperature Control: Variable 2,000 – 10,000 K
Beam Virtual Color wheel: 48 color presets, continuous rotation & random color
Zoom: Motorized with 1:8 zoom ratio
Pan: Motorized 540°
Tilt: Motorized 268°
Beam PixelMapping: individual RGB control of each of the 19 Beam pixels
Beam P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Aura Dimmer/Shutter: 0 – 100% continuous dimming, regular and random strobe effects, instant open and blackout
Aura Dimming options: Choice of four dimming curves
Aura Color Mixing: RGB, independently variable 0 - 100%
Aura Color Temperature Control: Variable 2,000 – 10,000 K
Aura Virtual Color wheel: 48 color presets, continuous rotation & random color
Aura PixelMapping: individual RGB control of each of the 141 Aura pixels
Aura P3 Mix: Videomapping of fixture with variable crossfade between DMX control and video control
Pre-programmed effects: Two ranges of FX on Beam, Aura or Combination; independent or synchronized/combined

Control and Programming

Control Protocols: DMX, RDM, Art-Net, RDM over Art-Net, sACN and P3
Protocol Detection: Automatic
DMX Modes: Compact, Basic, Extended & Ludicrous
DMX Channels: 17, 32, 89 & 512
16-bit Controllable Parameters: Beam & Aura Dimming, Beam Color Mixing, Pan and Tilt
Setting and Addressing: Display Menu, RDM, RDM over Art-Net or P3
Local User Interface: Backlit LCD Display with battery-powered operation
Fixture identification: User-settable ID number
DMX Compliance: USITT DMX512-A
RDM Compliance: ANSI/ESTA E1.20
Art-Net Compliance: Art-Net 1, 2, 3 and 4; including RDM over Art-Net
sACN Compliance: ANSI E1.31 - 2016
Martin P3 Compliance: P3 System Controller Software 5.1.0 or newer
DMX/RDM Transceiver: Galvanic-isolated RS-485
Ethernet Transceiver: 10/100Mbit (with fail-safe bypass)
Firmware Update: via USB type A memory device, via DMX using Martin Companion or via Ethernet using P3 System Controller

Optics

Front Lens Diameter: 255 mm (10.04 in.)
Zoom Range: 1:8
Full Zoom Range at Half Peak (Beam Angle): 6° - 40°
Full Zoom Range at Tenth Peak (Field Angle): 7° - 59°
Beam Light Source: 19 x 40 W RGBW LED
Aura Light Source: 141 x 0.3 W RGB LED
Max. Total Beam LED Engine Power: 570 W
Max. Total Aura LED Engine Power: 50 W
Minimum LED lifetime: > 50.000 hours (to > 70% luminous output)*

Photometric Data

Light Engine Luminous Output: 19,000 lumens
Fixture Luminous Output Wide: 10,500 lumens
Fixture Luminous Output Narrow: 8,500 lumens
Peak Luminous Intensity Narrow: 940,000 cd
CCT: Variable 2,000 K – 10,000 K (+/- 200 K)
CRI (Color Rendering Index): ≥ 73
CQS (Color Quality Scale): ≥ 85
TM-30 Rf (IES TM-30-15 Fidelity Index): ≥ 77
TM-30 Rg (IES TM-30-15 Gamut Index): ≥ 117
TLCI (Television Lighting Consistency Index): ≥ 61
Beam LED Refresh Rate: 1,200 Hz and 19,200 Hz mode
Aura LED Refresh Rate: 1,200 Hz and 4,004 Hz mode
Binning: Tight color and flux binning
Calibration: Full Gamut Color Calibration of Beam and Aura

Construction

Housing: High-impact flame-retardant thermoplastic
Color: Black
Protection rating: IP 20

Installation

Mounting points: 2 pairs of 1/4-turn points for 106 mm (4.17 in.) center-to-center omega brackets
Location: Indoor
Orientation: Any
Minimum distance to combustible materials: 0.2 m (7.87 in.)
Minimum distance to illuminated surfaces: 2.4 m (94.49 in.)

Connections

AC mains power in/thru: Neutrik powerCON TRUE1
Firmware from flash memory: USB 2.0 type A port
DMX and RDM data in/thru: Neutrik 5-pin locking XLR
Ethernet (Art-Net, sACN and P3) in/thru, including fail-safe bypass: Neutrik etherCON

Electrical

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A
Typical earth-leakage current: 0.36 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V
Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *

Power Consumption

AC power: 100-240 V AC nominal, 50/60 Hz
Power supply unit: Auto-ranging electronic switch mode
Typical half-cycle RMS inrush current at 230 V, 50 Hz: 15.9 A
Typical earth-leakage current: 0.36 mA
Power Factor: 0.99 @ 100 V / 120 V , 0.97 @ 208 V / 230 V / 240 V
Max current draw: 6.4 A @ 100 V / 120 V , 2.8 A @ 208 V / 230 V / 240 V
Typical current draw: 5.0 A @ 100 V , 4.1 A @ 120 V , 2.4 A @ 208 V , 2.2 A @ 230 V , 2.1 A @ 240 V *

Thermal

Cooling: Forced air (temperature regulated, low noise, user-definable levels)
Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Maximum surface temperature, steady state, at 40° C ambient: 53° C (128° F)
Total heat dissipation (calculated, +/- 10%): 1563 BTU/hr.

Acoustic Data

Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): 32.6 dB(A)
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): 24.6 dB(A)

Environmental

RoHS: Compliant
REACH: Compliant
WEEE: Compliant
Proposition 65: Compliant
Efficacy (max output): 25.4 lm/W
LWR*: 705 lm/kg (320 lm/lb)
LWR = Lumen-to-Weight Ratio

Approvals

Global CB Certification/IECEE: IEC 60598-2-17 (IEC 60598-1)
EU safety: EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493
EU EMC: EN 55015; EN 55032; EN 55035; EN 61547; EN 61000-3-3
US safety: UL 1573
US EMC: FCC Part 15 Class B
Canadian safety: CSA C22.2 No. 166
Canadian EMC: ICES-003 Class B, ICES-005 Class B
Australia/NZ: RCM
United Kingdom: UKCA

What’s Included:

Two omega brackets with 1/4 turn fasteners for rigging clamp attachment
Safety and Installation Manual in Eng/Fre/Ger
